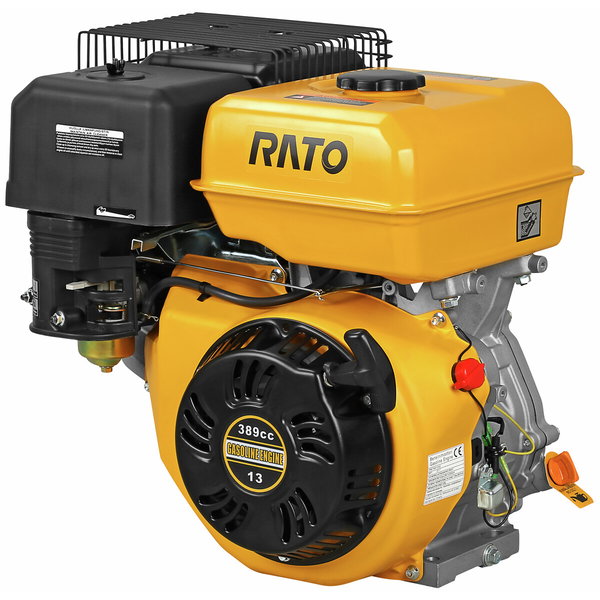

ENGINE 10,5HP 389CC 4-STROKE HORIZONTAL SHAFT
SKU:
R390
Item available
Product warranty 24 months
- motor 4-cycle, OHV, 1-cylinder
- displacement 389 cm³
- compression ratio 8.0:1
- cylinder diameter Ø 88 mm
- cylinder stroke 64 mm
- axle Ø 25 mm, length 57 mm, thread M8x1,25, splines 7 mm
- max. power 7,6 kW / 3600 rpm
- max. torque 23 Nm / 2500 rpm
- cooling system: air cooling
- igniting system: transistorized magneto (TCI)
- spark plug: BP6ES (NGK) / F6RTC (NHSP) / F6TC / F7RTC / F7TC
- lubrication mode: splash
- PTO shaft rotation: counter clockwise
- fuel tank 6,5 l
- oil SAE 10W-30
- oil tank 1,0 l
- dimensions 415 x 413 x 440 mm
- weight when empty 31 kg
| Package length (cm) | 51 |
|---|---|
| Package width (cm) | 45 |
| Package height (cm) | 49 |
| Gross weight (kg) | 35.150000 |
| EAN | 6418914916791 |
