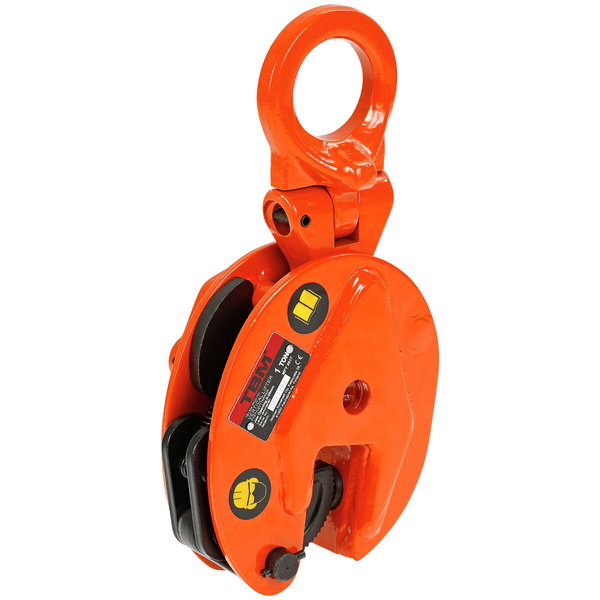

STEEL PLATE CLAMP 1T VERTICAL
SKU:
TB1304
Item available
Product warranty 12 months
- capacity max. 1000 kg
- test load 14,7 kN
- jaw distance 0 - 20 mm
- weight 5 kg
Dimensions:
- A 22 mm
- B 63 mm
- C 167 mm
- D 295 mm
- E 48 mm
- F 138 mm
- G 50 mm
- H 51 mm
- K 12 mm
Warning:
- never exceed maximum capacity
- never lift under 20 % of the rated capacity
- used on all hot rolled structured steel plates and sections up to a surface hardness of 300 Brinell / 32 Rockwell C
| Package length (cm) | 32.5 |
|---|---|
| Package width (cm) | 17 |
| Package height (cm) | 8 |
| Gross weight (kg) | 4.840000 |
| EAN | 6418914947580 |
