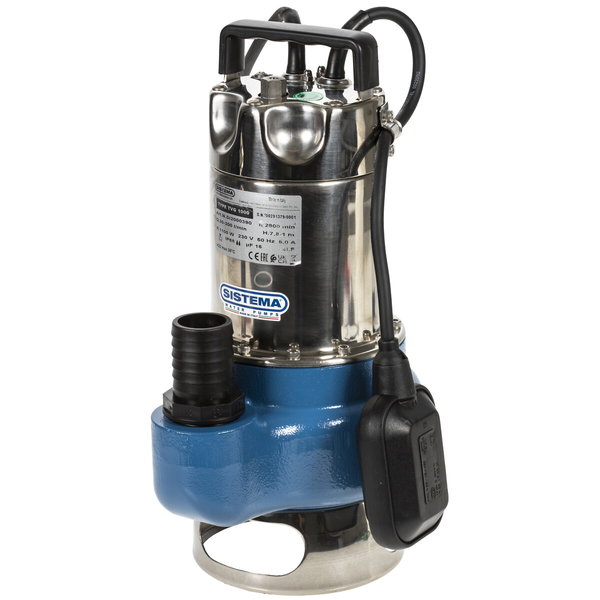

SUBMERSIBLE PUMP TVG 1000 AV 1100W / 230V
SKU:
SIS002
Only few left
Product warranty 24 months
- Sistema TVG 1000 submersible pump
- 1100 W / 230 V
- can also be used to mildly acidic liquids
- motor has a double-chamber oil lubrication system
- motor casing stainless steel AISI 304
- pump body cast iron
- impeller stainless steel AISI 304
- rotor shaft stainless steel AISI 304
- seal material NBR
- max. delivery 18000 l/h (18 m³/h)
- max. lifting height 7.8 m
- max. submersion depth 5 m
- max. particle size of sewage 35 mm
- height of residue water 65 mm
- max. temperature of liquid 35°C
- hose connection 38 mm (1 1/2")
- cable H07RN-F
- cable length 10 m
- insulation class F
- protection class IP68
- weight 13.1 kg
Dimensions (mm):
- A 112
- B 232
- C 131
- H 368
| Package length (cm) | 20 |
|---|---|
| Package width (cm) | 22.5 |
| Package height (cm) | 40.7 |
| Gross weight (kg) | 13.008000 |
| EAN | 8006414126123 |
